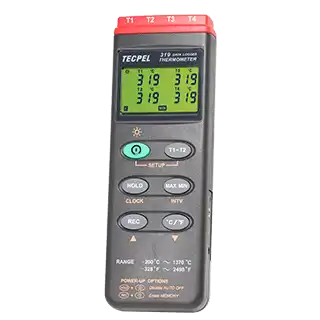

DTM-319 4 Channel thermocouple Thermometer USB Data Logger

Product Introduction

Measurement Specification

• Measuring Range : -200~1370°C (-328~2,498°F)
• Accuracy : ±(0.3% + 1°C) at -200°C ~ 200°C
• Resolution : 0.1°C
• Type of Thermocouple : K-Type
• Sampling rate : 3 seconds per testing circle
• Reacting time : According to the sensor

Product Features

• MAXIMUM AND MINIMUM FUNCTION :
• T1 T2 DIFFERENCE (T1-T2) :
• TEMPERATURE UNIT SELECTABLE : °C／°F
• HOLD (HOLD) :
• FRONT PANEL OFFSET ADJUSTMENT :
• DATA LOGGING : 16,000
• RECORDING INTERVAL SETUP : 1 Sec. to 60 Minutes
• AUTO SHUT OFF : 30 Minutes
• OVERRANGE INDICATION : OL
• BACK LIGHT DISPLAY :
• LOW BATTERY INDICATOR :
• TRIPOD PLACED HOLE :

Product Information

• Working environment : 0~50°C / lower than 90%RH without dew。
• Storage environment : -10~40°C / lower than 70%RH without dew。
• Elevation Limitation : Lower than 1,000 meters
• Power Supply : 9V battery
• Dimension : 1184 x 64 x 30 mm
• Weight : 210g (7.4 oz)

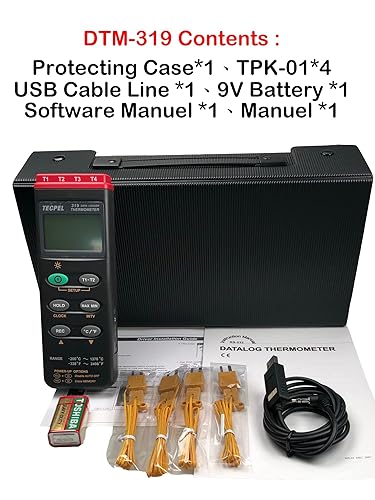

• Accessory : Software program for Windows、USB cable、RS-232 Computer interface，TPK-01*2、Suitcase
• Optional Accessory : ADP-01 AC Power Transmitter (Output DC 9V)、Other Type-K thermocouple probes
