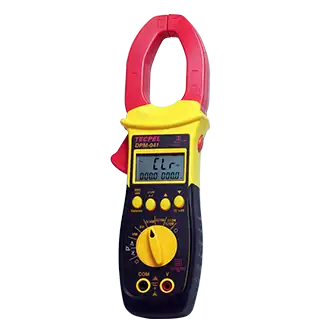

DPM-041 Digital Clamp Power Meter

More information....

Digits Display : 9,999 digits
Clamp Caliber : Ø50 mm
AC Current (True RMS) : 600 / 1,000 A
AC Voltage (True RMS) : 600 V
Peak Value Measurement : 5~1,000A / 5~600 V ±(5% +10 value) when frequency is 45~65Hz
Frequency : 20~400Hz
Power Factor (PF) : Resolution 0.001
Effective Power (kW) : Resolution 0.01 / 0.1kWz
Inspecting Power (kVA) : Resolution 0.01 / 0.1 kVA
Reactive Power (kVAR) : Resolution 0.01 / 0.1 kVAR
Current Resolution : 0.1A
Voltage Resolution : 0.1V
Current Accuracy : ±(1.5% +10 value) when frequency is 50~60Hz
Voltage Accuracy : ±(1% +5 value) when frequency is 20~100Hz

Three sets of digital display :
Phase Angle :
Single-phase two-wire measurement :
Single-phase three-wire measurement :
Three-phase three-wire measurement :
Three-phase four-wire measurement :
Inrush current measurement :
Auto Shut Off(APO) :
MAX／MIN／AVG :
Data hold (HOLD) :
Safety specifications : Approved voltage 1000V Category III, pollution degree 2

TECPEL DPM-041 Digital Clamp Power Meter (Discontinued)
