Model：DCM-2605(Discontinued and replaced by DCM-2608D)

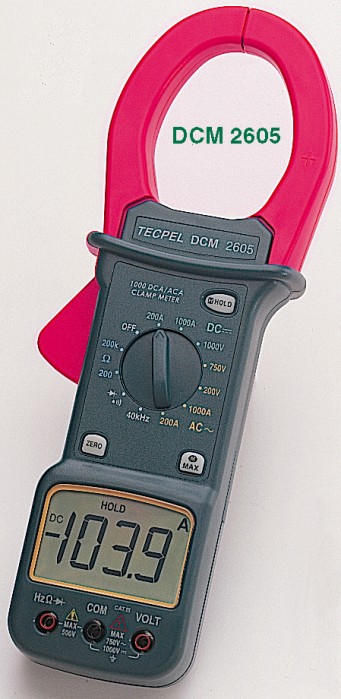

This Tecpel® clamp meter dcm-2605 is a handheld 2000-count clamp multimeter that is designed for use in
the laboratory, field servicing, at home, and any circumstance where high current measurement is required.
The rugged clamp meter from Tecpel® is built with a design of finger guard which ensures users operating
this great tool under a safety situation; a rugged plastic case that is a shock resistant and fire retardant;
and electronic overload protection for all functions and ranges. In addition, a soft carrying case is available
for easy portability of the meter and avoiding damage.
Features of DCM 2605
1. 3 1/2 digit display
2. AC/DC current up to 1000A
3. AC voltage up to 750V
4. DC voltage up to 1000V
5. Resistance up to 200kΩ
6. Frequency up to 40kHz
7. Display hold function
8. Audible continuity test
9. Over range indication
10. Maximum recording mode
11.Confirm to the IEC-1010-1 ,
UL 1244/UL3111, CE standard
12. Hand guard protection
13. Carrying case
SPECIFICATIONS
CE Mark Safety Approval
DCM 2605 SPECIFICATIONS:
Specifications :
DC Voltage Ranges: 1000V,±(0.5%+1dgt)
AC Voltage Ranges: 200V,750V, ±(1.5%+4dgts)
AC Current Ranges: 200A,1000A, ±(1.5%+5dgts)
DC Current Ranges: 200A,1000A, ±(1.5%+5dgts)
Resistance Ranges: 200Ω,200KΩ, ±(1.0%+3dgts)
Continuity Test: Audible indication less than 30Ω
General
Power Requirement: One 9V battery
Dimensions: 10.9"x4.0"x1.9" (277x102x49mm)
Weight: 18.9 oz/540g
Accessories: Test leads; soft carrying case, battery, and owners manual
