K/J/T/E/R/S/N Type Dul Input Thermometer

¡@

Model: DTM-506B

Features:

K/J/T/E/R/S/N Type Dul Input Thermometer

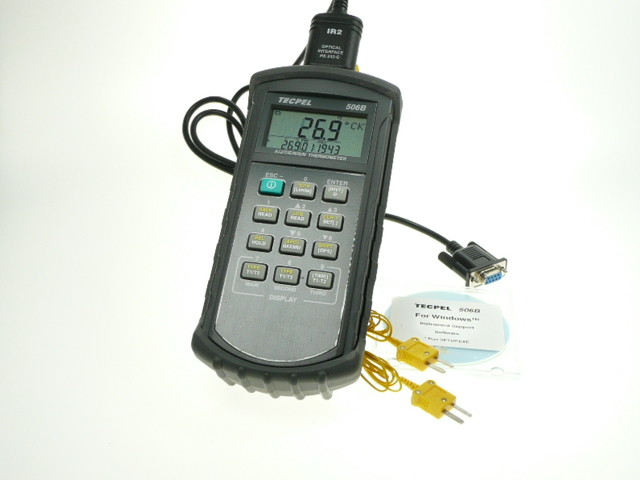

K/J/T/E/R/S/N-Type Dual Input Thermometer ( DTM-506B)

1.K/J/T/E/R/S/N-Types
2.Dual Input Thermometer
3.Spraywater Protected , Dust Proof IP53
4.RS-232 Optical Interface 25000 Counts
5.Back-light Display
6.Data logger function: 16 sets. Maximum 1024 data capacity.
Model: DTM 506B

Features:
1.CE-Mark approval
2. 4 1/2 digital 25000 counts with high resolution
3. K/J/T/E/R/S/N-types thermocouple selection dual input MAX/MIN with elapsed time, AVG, REL, HOLD function
4. Warning beeper with Hi/Lo setting
5. TIME setting, REL setting
6. ¢XC/ ¢XF user-seletive
7. Resolution 0.1¢X

¡@

SPECIFICATIONS        CE  Mark Safety Approval
DTM 506B Specifications:
  • Display: 4 1/2 digit liquid crystal display (LCD) with a maximum reading of 25000.
  • Low battery indication: The " Battery sign " is displayed when the battery voltage drops below the operating level.
  • Measurement rate: 1 time/second.
  • Operating environment: 0¢XC to 50¢XC, <70% R.H..
  • Storage environment: -20¢XC to 60¢XC, 0 to 80% R.H. with battery removed from meter.
  • Accuracy: Stated accuracy at 23¢XC ¡Ó5 ¢XC, <75% R.H..
  • Dimensions: 195mm(H) x 92mm(W) x 53mm(D).
  • Weight: Approx. 250g. (including battery)
  • Temperature:
  • Measurement / Calibration Range
  • K-type (0.1¢XC) -200¢XC to 1372¢XC, -328¢XF to 2501¢XF
  • J-type (0.1¢XC) -210¢XC to 1050¢XC, -346¢XF to 1922¢XF
  • T-type (0.1¢XC) -200¢XC to 400¢XC, -328¢XF to 752¢XF
  • E-type (0.1¢XC) -210¢XC to 790¢XC, -346¢XF to 1454¢XF
  • R-type (1¢XC) 0¢XC to 1767¢XC, 32¢XF to 3212¢XF
  • S-type (1¢XC) 0¢XC to 1767¢XC, 32¢XF to 3212¢XF
  • N-type (0.1¢XC) -50¢XC to 1300¢XC, -58¢XF to 2372¢XF
  • According to temperature standard ITS-90
  • Accuracy: ¡Ó(0.05%rdg + 0.3¢XC) on -210¢XC to 1767¢XC
  • ¡Ó(0.05%rdg + 0.6¢XF) on -346¢XF to 3212¢XF
  • Accessories: TPK-01 x 2 (-50¢X to 200¢XC), rubber holser, owners manual, RS-232 cable and software disk.
  • Applications:
    • 1. Greenhouse 2.Weather monitoring
    • 3.Office environment 4.Art galleries/Museums
    • 5.Labs 6. Department store 7.Environment studies 8.Workshops




¡@¡@
