Clamp Transducers

Product ID: CA-60

AC/ DC mA Current Clamp-on Transducer

1. This miniature clamp meter features two Hall effect sensors
2. For use with any multimeter with 200mV or/and 2V ranges

for direct readout input impedance of least 1M ohm.
3. High conversion factor for low DC and AC mA measurement.
4. With the small jaw size it can fit into tight space in circuit panel

or wire bundle to take the reading
5. The high frequency response at 20 kHz is useful for

waveform monitoring on an oscilloscope.
6. Zero adjustment is made easy by just pushing the ZERO button.
7. It is best for locating small signal, industrial control,

battery leakage,and automotive usage


	Product ID: CA600 AC/DC Current Clamp Transducer Specifications: CA-600 DC/AC Current Clamp Adapter Model!GCA-600 Features : Coverts any DMM to a current clamp Measure current without disconnecting circuit under test AC/DC 600A capability Dual Hall-effect sensors Accuracy DC:!O2%+2A AC: !O3%+2A (50~400Hz) For use with any multi-meter at 200mV or 2V ranges for direct readout. Input impedance at least 1M Ohm Power on indicating Zero adjustment knob to compensate the hysterics effect in DC Measurements.) Transformer ratio:1000:1 Output 1mV/A Jaw opening capability:30mm conductor Confirm to Safety:IEC 1010-1, IEC 1010-2-032,UL,CE approved. Low battery indication Model : CA 600

	Product ID: CA1000D CA1000D Clamp-on Transducer: 1000Amp AC/DC Clamp Adapter ¡@ Model¡GCA-1000D Features : 1000A AC or DC Current Clamp Measure current without disconnecting circuit under test Measure to 1000A DC or AC Outputs 1mV per Amp, operates on 2V range of any DMM

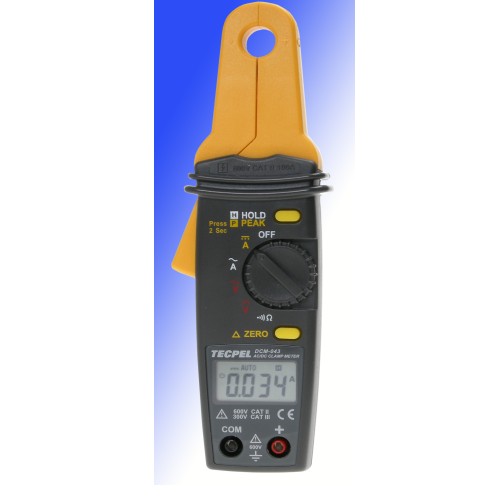

	AC/DC current clamp meter with clamp transmitter DCM-043 Analog signal output function High Resolution 1mA (0.001A) Pocket size 4 digits display Touch zero function Autoranging Auto power off Peak hold function Data hold function IEC 1010 600V CAT II,300V CAT II

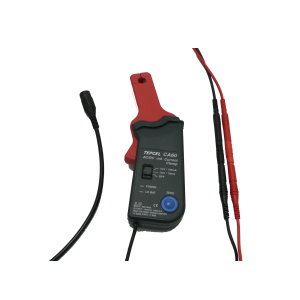

	Using LF-180 BNC probe and TL-19 Female/Female adapter for connecting with Oscilloscope.
