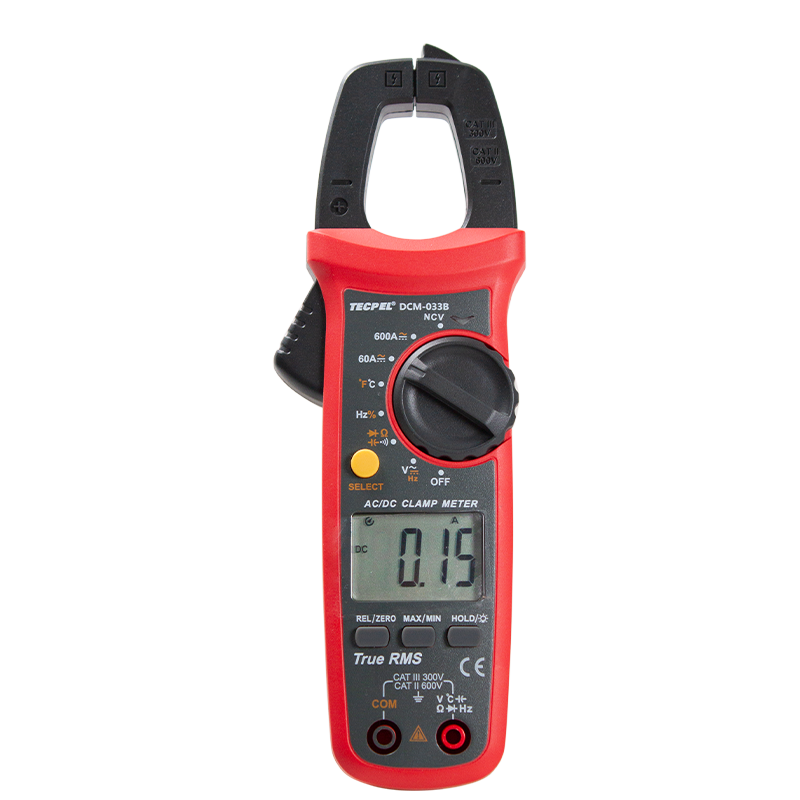

DCM-033B 6000 Count Digital AC DC current 600A clamp meter
Model: DCM-033B
DCM-033B Hand-held automatic shifting true effective value digital hook meter. It designed in accordance with the safety standard EN61010-2010 CAT II600V/CAT III 300V level with full-function gear anti-burn protection which can meet high reliability and High safety operation requirements;
The product contains the basic functions of electrical measurement with high-precision measurement and extended temperature measurement functions. The more novel appearance design makes it an excellent measurement tool for electronic motors with superior performance.
FEATURES
* 6000 Count
* True RMS
* Small Current Measurement
* 60mF Cap. measurement
* LCD backlight
* Jaw opening 28mm
| Function | Range | Accuracy |
| AC Current（A） | 0.06〜600A | ±（2％+ 5） |
| DC Current (A） | 0.06〜600A | ±（2％+ 5） |
| AC Voltage（V） | 600V | ±（0.8％+ 5） |
| AC Voltage Frequency（Hz） | 10Hz~60kHz | ±（0.5％+ 2） |
| DC Voltage（V） | 600V | ±（0.5％+ 2） |
| Resistance（Ω） | 60 MΩ | ±（0.8％+ 2） |
| Capacitance ( F） | 60mF | ±（4％+ 5） |
| Temperature(℃) | -40~1000℃ | ±（1.5％+ 5） |
| Frequency（Hz） | 10Hz~10MHz | ±（0.1％+ 4） |
| Digits Display | 6000 | |
| LCD Back Light | √ | |
| Automatic Shift | √ | |
| Hook Opening | 28mm | |
| True RMS | √ | |
| NCV | √ | |
| Beeper | √ | |
| Diode | √ | |
| Max / min | √ | |
| Relative Mode | √ | |
| Zero Mode | √ | |
| Data Hold | √ | |
| Low Battery Indicator | √ | |
| Auto Shut off | √ | |
| Battery | 1.5V Battery（AAA）x 2 | |
| Weight | 235g | |
| Dimension | 215mmx 63mmx 36mm | |
| Accessory | Battery, Test lead, Thermocouple, Manual | |
