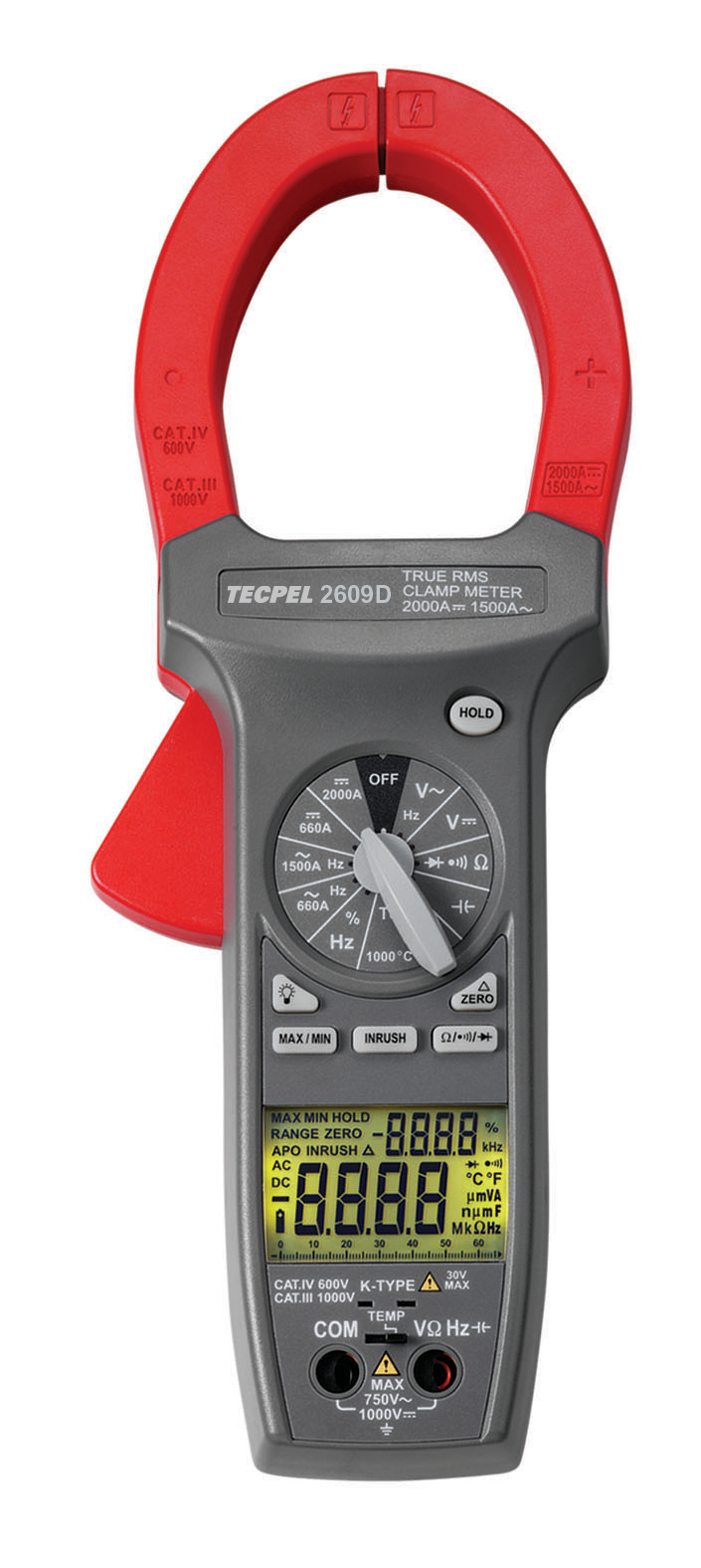

Digital clamp meter  Inrush Current

 AC 1500A, DC 2000A

Model: DCM-2609D

This Tecpel® clamp meter dcm-2609d is a handheld 6600-count clamp multimeter that is designed for use in the laboratory, field servicing, at home, and any circumstance where high current measurement is required.

The rugged clamp meter from Tecpel® is built with a design of finger guard which ensures users operating this great tool under a safety situation; a rugged plastic case that is a shock resistant and fire retardant; and electronic overload protection for all functions and ranges. In addition, a soft carrying case is available for easy portability of the meter and avoiding damage.

 Features:

(INRUSH) (TRUE RMS)
(Temperature) (Backlight)
6600 counts, bar graph display
Dual Display of Frequency with Current or
Voltage or % Duty Cycle
Auto-ranging
Auto power off
Overload protection
Safety input jacks
Safety test leads
Safety: EN61010-1, EN 61010-2-032,
CAT IV 600V, CAT III 1000V, CE approved
Jaw opening capability: 57mm conductor.
Dimensions: 281mm(H)×108mm(W)×53mm(D)
Weight: Approx. 570g

SPECIFICATIONS

DC Current: 660A, 2000A ±2.0%
AC Current: 660A, 1500A ±2.0% (50-400Hz)
DC Volts: 6.6V, 66V, 660V, 1000V ±0.5%
AC Volts: 6.6V, 66V, 660V, 750V ±1.5% (50-500Hz)
Resistance: 660Ω, 6.6kΩ, 66kΩ, 660kΩ, 6.6MΩ, 66MΩ ±1.0%
Capacitance: 6.6nF, 66nF, 660nF, 6.6μF, 66μF, 660μF, 6.6mF ±3.0%
Temperature: -20°C - 1000°C, -4°F - 1832°F ±1.0% K-type thermocouple
% Ducy Cycle: 5% - 95% ±2.0%
Frequency: 10Hz - 1MHz ±0.1%
Diode Test Continuity Test DATA Hold
MAX / MIN Hold Δ(Relative) DCA ZERO
INRUSH Backlight
Resolution: 0.1A, 1mV, 0.1Ω, 1pF, 1°C, 1°F, 0.1%, 0.01Hz

                                                      -
