Multimeter Palm size DMM-135A

CONTENT=" Multimeter Palm size dmm-135A ">

TECPEL - Propel Quality Measurement

Low cost Multimeter

DMM-135A

features :

Palm Size Digital Multimeter DMM-135A RoHS New CE

Digital Multimeter 3 3/4 Digits, 3,999 Counts
8 functions, 21 ranges
Continuity Beeper
Diode Test
Auto Ranging

Digital Multimeter

DMM 135 Features:
1. 3 3/4 Digits, 3,999 Counts
2. 8 functions, 21 ranges
3. Continuity Beeper
4. Diode Test
5. Auto Ranging

Digital multimeter dmm-135a

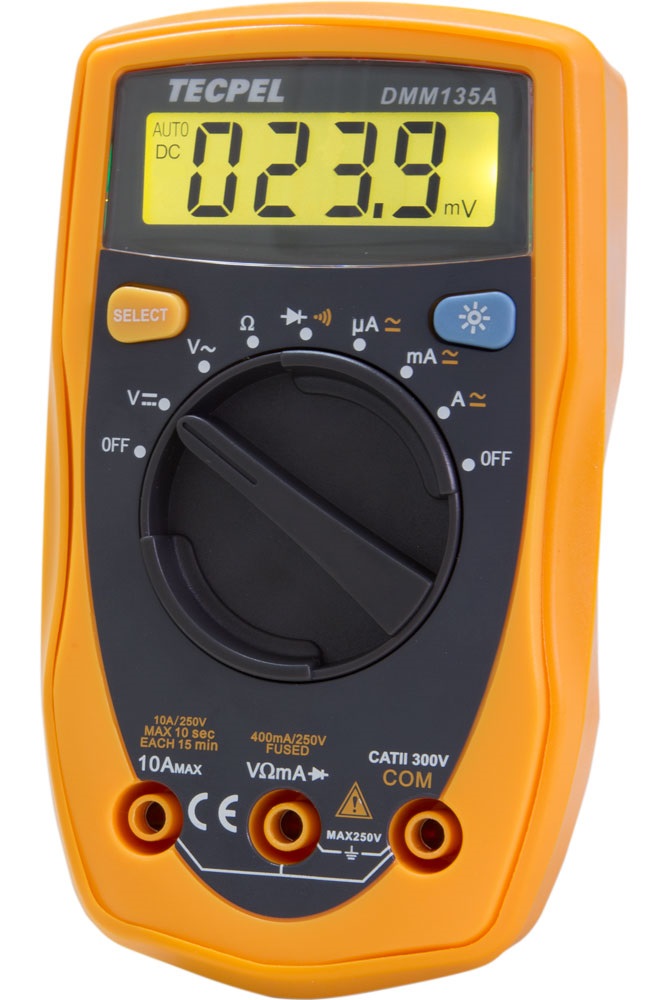

Model : DMM-135A

SPECIFICATIONS

Palm Size Digital Multimeters
SPECIFICATIONS Basic Functions Range Best Accuracy
DC Voltage 400mV/4V/40V/400V/250V (0.8%+1)
AC Voltage 40V/40V/400V/250V (1.2%+3)
DC Current 400uA/4000uA/40mA/400mA/4A/10A (1%+2)
AC Current 400uA/4000uA/40mA/400mA/4A/10A (1.5%+5)
Resistance 400/4k/40k/400k/4M/40M ohm (1%+2)
Special Functions
Auto Ranging
Diode
Continuity Buzzer
Low Battery Display
Input Impedance for DC
Voltage Measurement Around 10MW
Max. Display 3999

GENERAL CHARACTERISTICS
- Power 1.5V Battery (AAA) x 2
- LCD Size 48 x 16mm
- Product Colour Yellow and Grey
- Product Net Weight Around 156g
- Standard Accessories Test Lead, Battery, English Manual, Holster
- Standard Individual Packing Gift Box
- Standard Quantity Per Carton 60 pcs
- Standard Carton Measurement Around 486 x 345 x 310 mm
- (Around 0.052 CBM Per Standard Carton)
- Standard Carton Gross Weight Around 18kg

Certificate:

CE; RoHS
