Dickson 6英寸（152毫米）溫度和濕度圖表記錄儀圓盤式溫濕度計 自記式溫濕度紀錄器

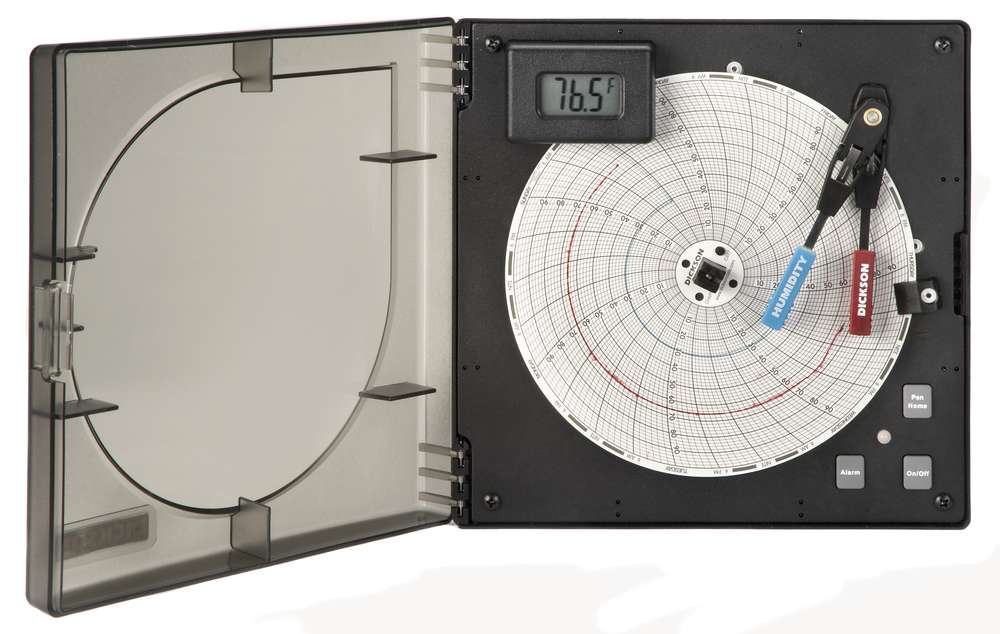

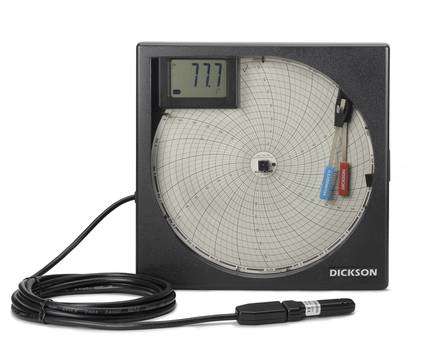

6" (152mm) Temperature & Humidity Chart Recorder
型號 Model：TH-6P3
特點:
6英寸（152毫米）溫度和濕度圖表記錄儀
我們的6英寸（152毫米）濕度圖表記錄儀系列具有時尚的外觀和精確的筆芯移動.TH6P3增加了數字顯示，遠程探頭和報警功能，使其成為我們最通用的6英寸（152毫米）溫度和濕度圖表記錄儀。
- 數字顯示
遠程探測器
警報
6“圖表（152毫米）
用戶可選擇的錄製時間和溫度範圍
交流電源備用電池
可更換傳感Features:
- 6" (152mm) Temperature & Humidity Chart Recorder
Our 6" (152mm) line of humidity chart recorders feature a sleek look and feel and precision pen movement. The TH6P3 adds a digital display, remote probe and alarms to make it our most versatile 6" (152mm) temperature and humidity chart recorder. - Digital Display
Remote Probe
Alarms
6" Chart (152mm)
User selectable recording times and temperature ranges
AC power with battery backup
Replaceable Sensors
規格
報警類型音頻/視頻高/低限制
環境工作RH條件0-95％RH無冷凝
環境工作溫度條件32.0至122.0F（0.0至50.0C）
認證RoHS，CE
備用電池備用9V備用電池。授權單位最多3天。
電池壽命（平均）72小時（僅備份）
校準選項N100，N300，N400
通道CH1：溫度，CH2：濕度
圖表旋轉速度24小時或7天
尺寸3.25 x 7.56 x 7.56in
顯示尺寸高度1.18
顯示尺寸寬度0.59
顯示分辨率0.1度從-9.9到199.9; 1學位分辨率高於2000且低於9.9
顯示類型LCD
外殼堅固的黑色ABS外殼，聚碳酸酯門，鋁製錶盤
濕度準確度+/- 2.0％RH，0.0至60.0％; +/- 3.0％RH，從60.0到95.0％
濕度範圍0-95％RH無冷凝
知識產權評級21
附帶配件AC適配器，紅色和藍色筆，9V電池，快速入門指南和探頭。 *圖表單獨出售。
鍵盤功能電源開/關，筆家，報警
安裝選項獨立式或壁掛式（帶鎖孔）
電源線6英尺
電源120至240 VAC，12 VDC（可提供INTL接頭）; AC適配器
電源狀態指示燈LED指示燈
遠程探頭尺寸在聚碳酸酯塑料中安裝熱敏電阻和RH傳感器; 1.5“x 0.5”（1.25cm x 4.5cm）
遙感器長度10英尺
遙感器型數字溫度傳感器
響應時間5分鐘至滿量程的63％
溫度精度+/- 1.8F，從32.0到122.0F（+/- 1.0C，從0.0到50.0C）
溫度範圍Help0.0至100.0F（0.0至50.0C）; 0.0至185.0F（0.0至85.0C）
溫度傳感器遠程探頭
單位重量9磅
單位/公斤1
保修12個月有限公司
規格
- Alarm Type Audio/Visual on High/Low Limits
- Ambient Operating RH Conditions 0-95% RH non-condensing
- Ambient Operating Temperature Conditions 32.0 to 122.0F (0.0 to 50.0C)
- Approvals RoHS, CE
- Battery Backup 9V Battery Back-up. Powers unit for up to 3 days.
- Battery Life (Avg) 72 Hours (Back-up Only)
- Calibration Options N100, N300, N400
- Channels CH1: Temperature, CH2: Humidity
- Chart Rotation Speed 24 Hour or 7 Day
- Dimensions 3.25 x 7.56 x 7.56in
- Display Dimensions Height 1.18
- Display Dimensions Width 0.59
- Display Resolution 0.1 Degree from -9.9 to 199.9; 1 Degree resolution above 2000 and below 9.9
- Display Type LCD
- Enclosure Rugged Black ABS Case, Polycarbonate Door, Aluminum Dial
- Humidity Accuracy +/-2.0% RH from 0.0 to 60.0%; +/-3.0% RH from 60.0 to 95.0%
- Humidity Range 0-95% RH non-condensing
- IP Rating 21
- Included Accessories AC Adapter, Red and Blue Pen, 9V Battery, Quick Start Guide and Probe. *Charts sold separately.
- Keypad Functions Power On/Off, Pen Home, Alarm
- Mounting Options Free Standing or Wall Mount (With Keyhole)
- Power Cord 6 ft
- Power Source 120 to 240 VAC, 12 VDC (INTL fittings available); AC Adapter
- Power Status Indicator LED Indicator
- Remote Probe Dimensions Houses thermistor and RH sensor in polycarbonate plastic; 1.5" x 0.5" (1.25cm x 4.5cm)
- Remote Sensor Length 10 ft
- Remote Sensor Type Digital Temperature Sensor
- Response Time 5 Minutes to 63% of Full Scale
- Temperature Accuracy +/-1.8F from 32.0 to 122.0F (+/-1.0C from 0.0 to 50.0C)
- Temperature Range
0.0 to 100.0F (0.0 to 50.0C); 0.0 to 185.0F (0.0 to 85.0C) - Temperature Sensor Remote Probe
- Unit Weight 9 lbs
- Units/Pkg 1
- Warranty 12-Month Limited
主要設置場所：溫室, 研究室,實驗室,電腦室,工廠, 醫院,美術館,博物館, 倉庫等需要溫濕度管理的地方
Main installation places: greenhouses, research rooms, laboratories, computer rooms, factories, hospitals, art galleries, museums, warehouses, etc. where temperature and humidity management is required
